BOSpulse 6.1 makes it possible to use reducer and orifice elements for modeling Pulsation Suppression

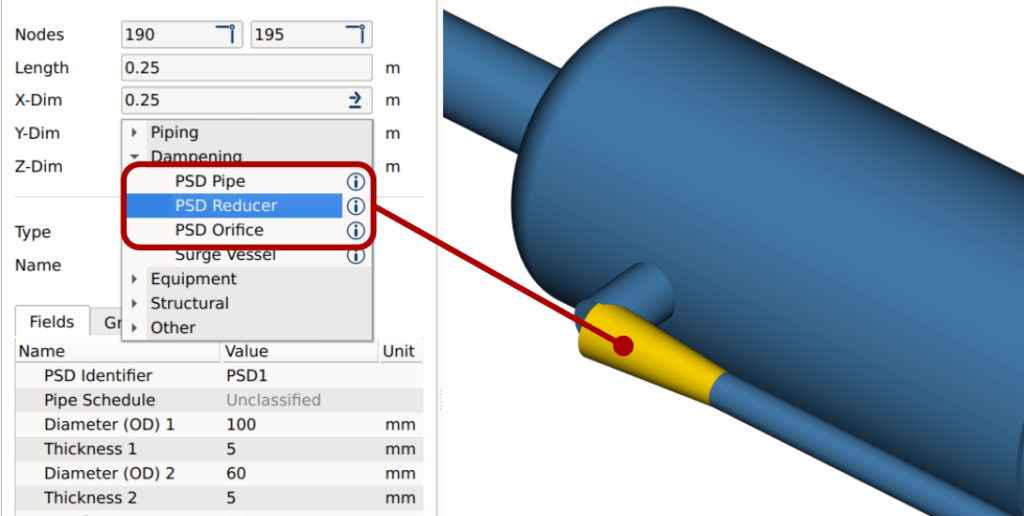

Devices (PSD). That is, you can compose a PSD of multiple PSD element types, including PSD Pipe (the former PSD element type), PSD Reducer and PSD Orifice. These elements are essentially the same as regular Pipe, Reducer and Orifice elements, except that they have an additional field for specifying the PSD identifier. The PSD element types are located in the new Dampening section in the element type selection box.
By using the new PSD element types you can make more detailed and accurate models of PSDs while retaining the ability to specify model parameters for an entire PSD.
