A new batch plot generator in BOSfluids 8.1 enables you to effortlessly generate a series of similar plots for a selected set of simulation cases, data sets, nodes, elements and/or node/element groups. The plots can be saved to individual image files or to a single HTML/PDF document.

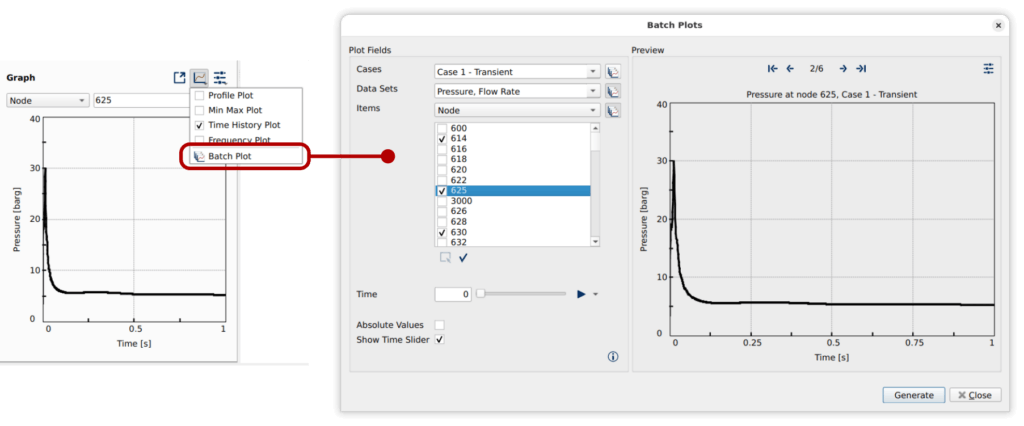

The batch plot generator features a setup window with which you can determine the number of plots to be generated, the data to be shown in each plot, and the layout of each plot. This window also shows a preview of the plots that will be saved to the specified output file(s).
