BOSfluids 7.1: Improved and more efficient user interface

As has become a sort of tradition, this new BOSpulse release brings many small and large improvements to its user interface that make it even more efficient and versatile. For instance, many dialog boxes for entering model parameters are embedded in the main BOSpulse window insteadof being shown in separate windows. This makes it possible to interact with the model viewer while the dialog box is active. In particular, when entering a reference to an element or a node,
you can simply select the target item in the model viewer.

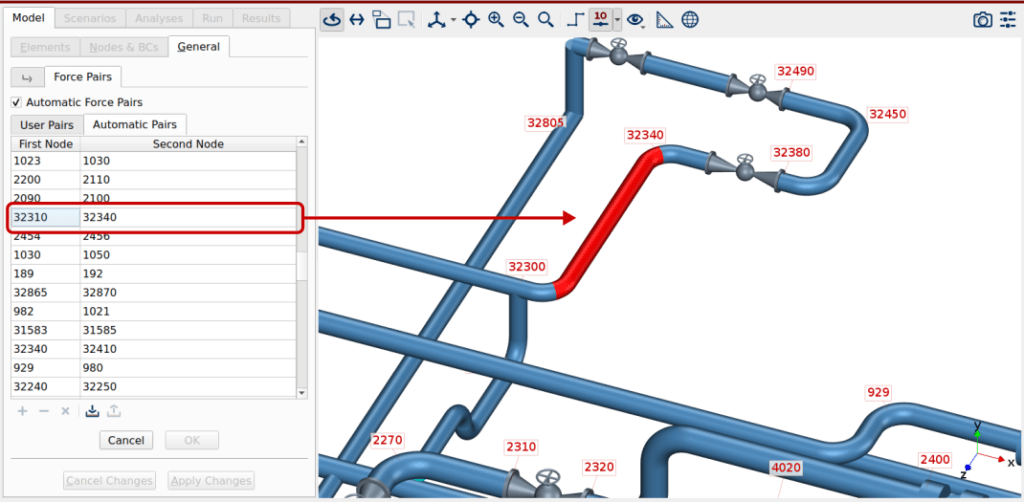

Force pairs can be specified more efficiently through a new, embedded dialog box that lists both the user-defined force pairs and the automatic force pairs. User-defined force pairs can be specified by selecting the relevant nodes in the model viewer. When selecting a force pair in the dialog box it is highlighted in the model viewer so that you do not have to search for the node identifiers.


If desired, the model viewer can show the orientation of pipe elements by means of direction markers. Those direction markers can also be used to indicate the flow direction in the Results tab page. This means that you no longer need to know the element orientation in order to determine the flow direction.
Other improvements to the user interface include: support for file names containing non-Latin characters; support for specifying the number format when generating custom reports; extension of the model viewer with support for specifying the node and element label density; support for adding captions to snapshots of the model viewer; and support for saving those snapshots automatically to image files.


Furthermore, we would also like to inform new and future users that our “Water hammer/surge analysis using BOSfluids” training course is available as an online training course. For more information on this course and other courses please visit us on


For more information on BOSfluids licenses and pricing, please contact:

Software Sales

+31 85 058 00 46

or request the demo version.
